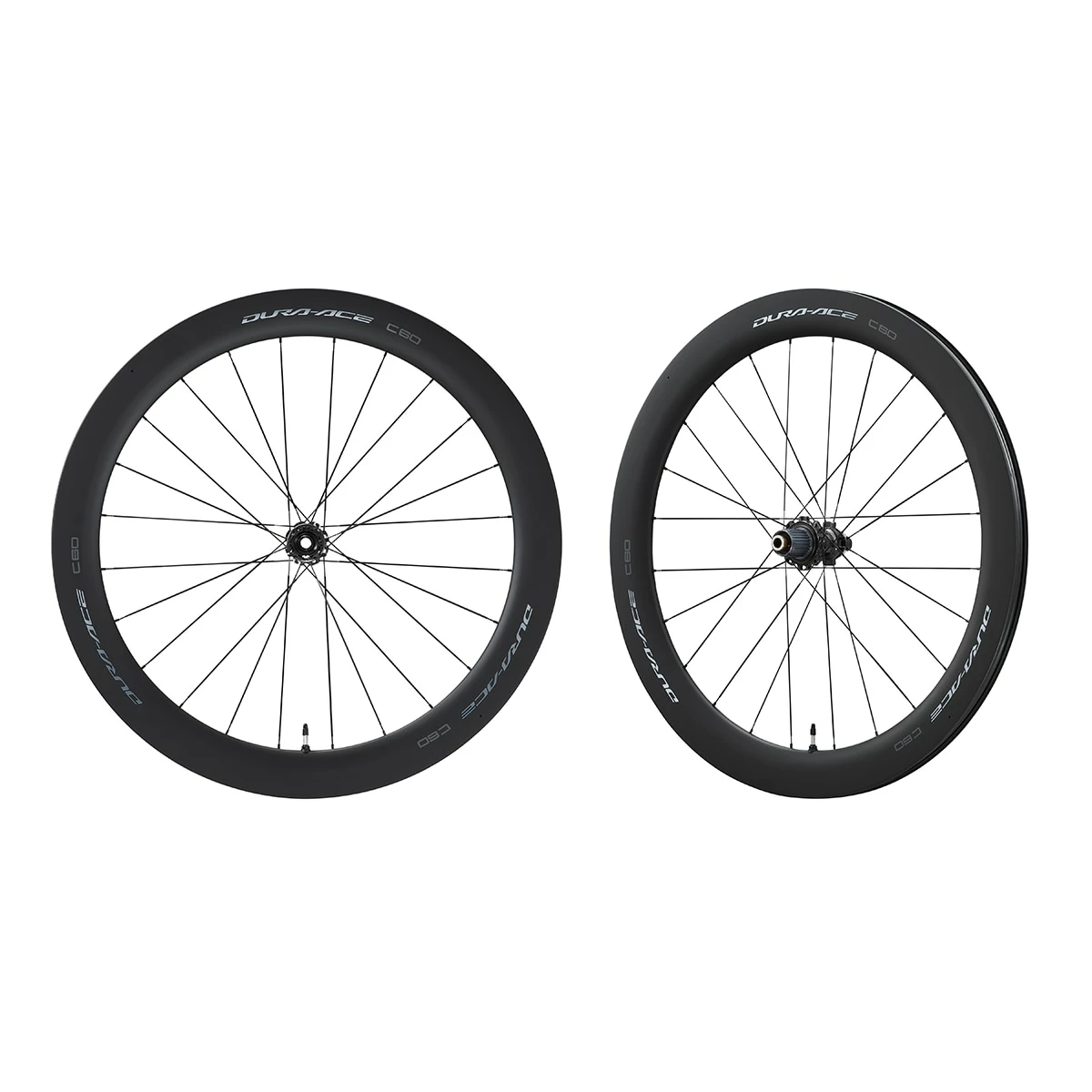

Shimano Dura Ace WH-R9270-C60-TL Disc Centerlock Road Wheels 28″/700C

The Dura Ace WH-R9270-C60-HR-TL Disc road wheels by SHIMANO offer an optimal balance of aerodynamics, stiffness, reliability and weight.

The 60 mm deep carbon rims, aerodynamically optimised bladed spokes and extremely efficient hubs give you plenty of propulsion and let you literally cut through the wind. Being tubeless-ready and having an inner rim width of 21 mm, the WH-R9270-C60-HR-TL Disc wheelset by SHIMANO can handle the trend towards wider road bike tyres, while also providing low rolling resistance, increased comfort, and improved grip when riding tubeless. Strong double-butted spokes give the wheelset maximum stiffness, which helps efficiently transfer your power into speed.

SHIMANO decided to fit the wheel with a 12-speed specific freehub. In addition, the Direct Engagement freehub system scores with up to 30% more stiffness and yet less weight compared to a standard SHIMANO pawl hub system.

Therefore, SHIMANO’s WH-R9270-C60-HR-TL Disc wheelset is the perfect choice, if you want to compete for the win, set a new best time on your favourite route or just like to use high-end wheel technology.

Details:
• Aerodynamically optimised high-end carbon wheels
• Set including front and rear wheel, for disc brakes
• SHIMANO Direct Engagement freehub technology for high efficiency and low weight
• Tubeless ready

Technical details:
• Intended use: Road bike
• Series: Dura Ace
• Model: WH-R9270-C60-HR-TL

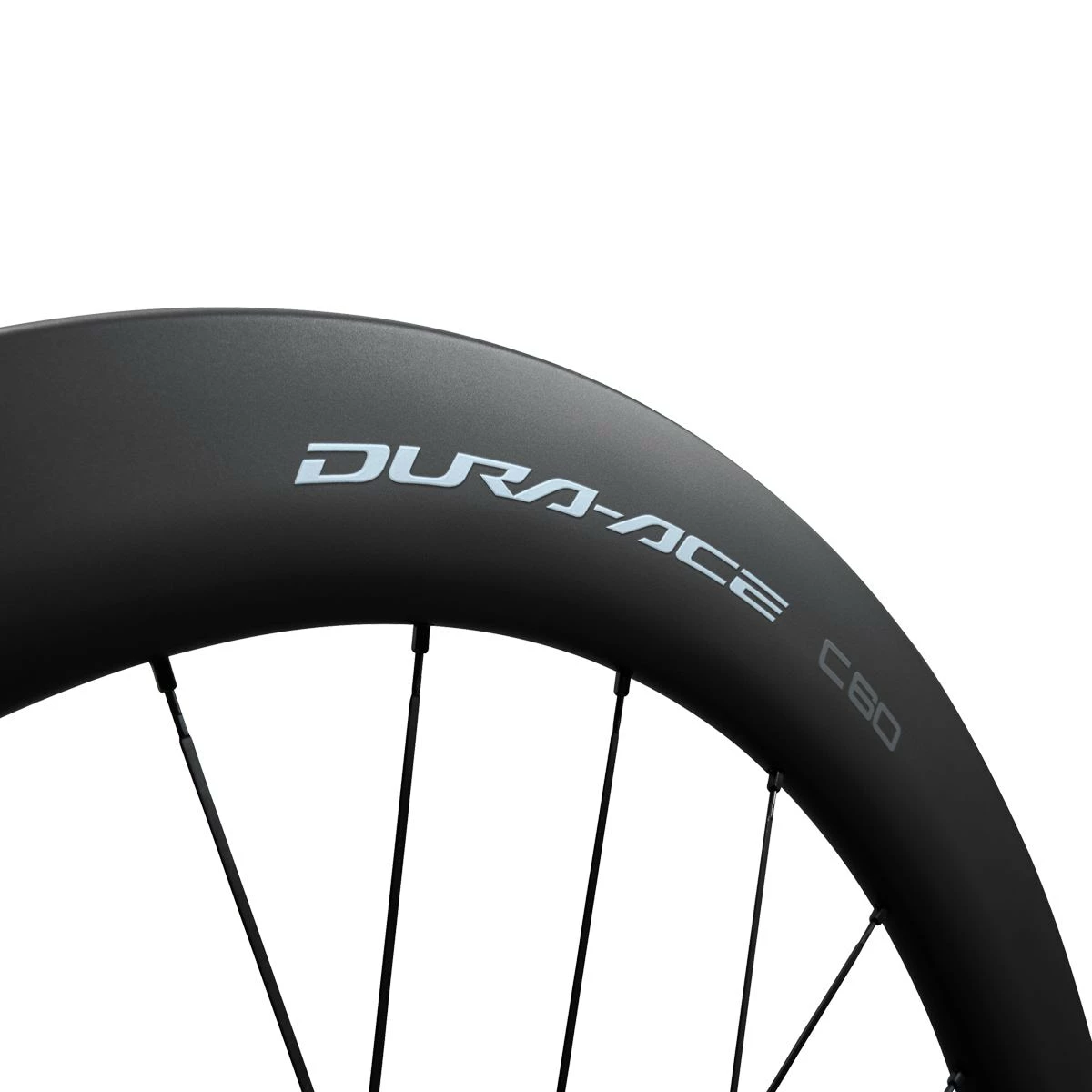

• Rim material: carbon

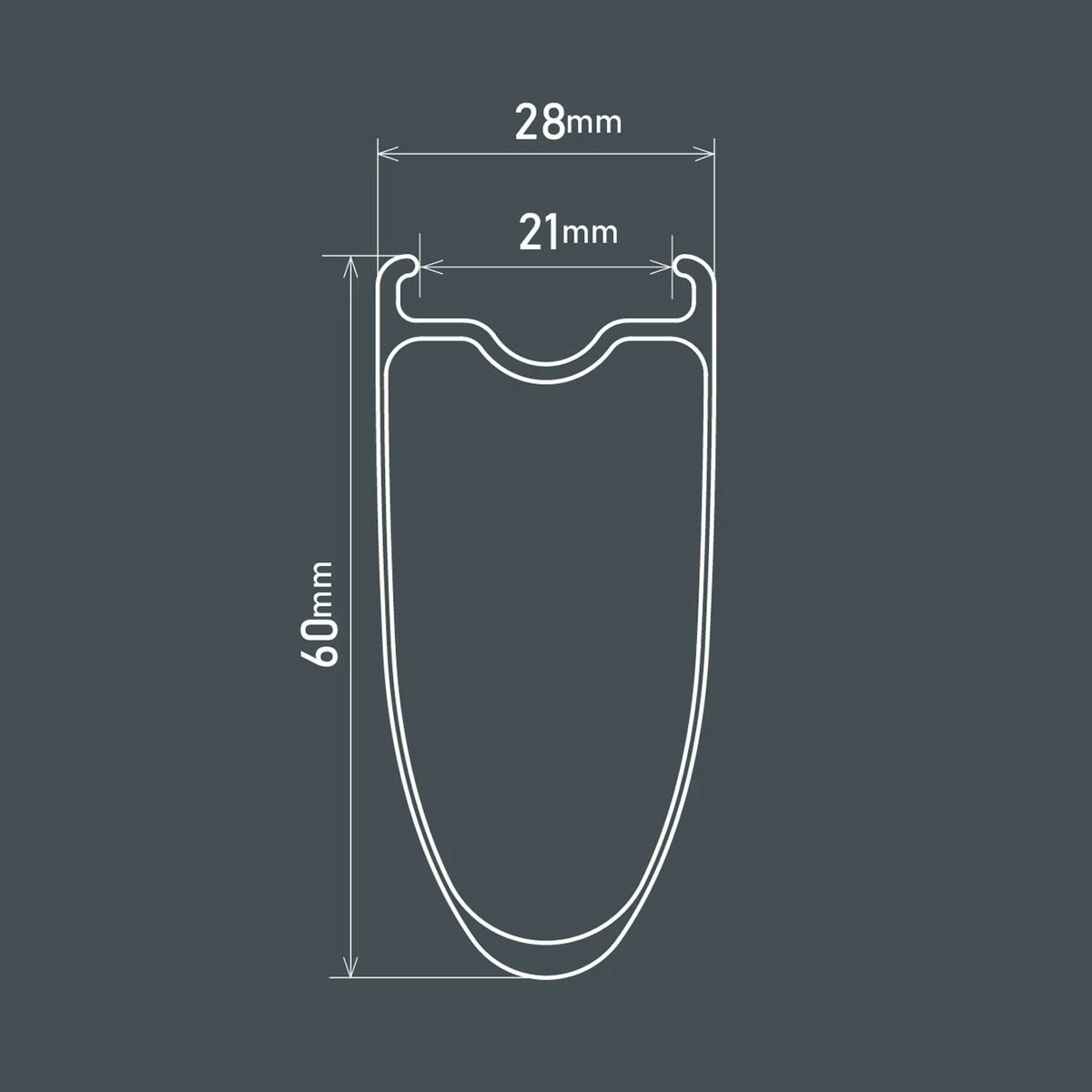

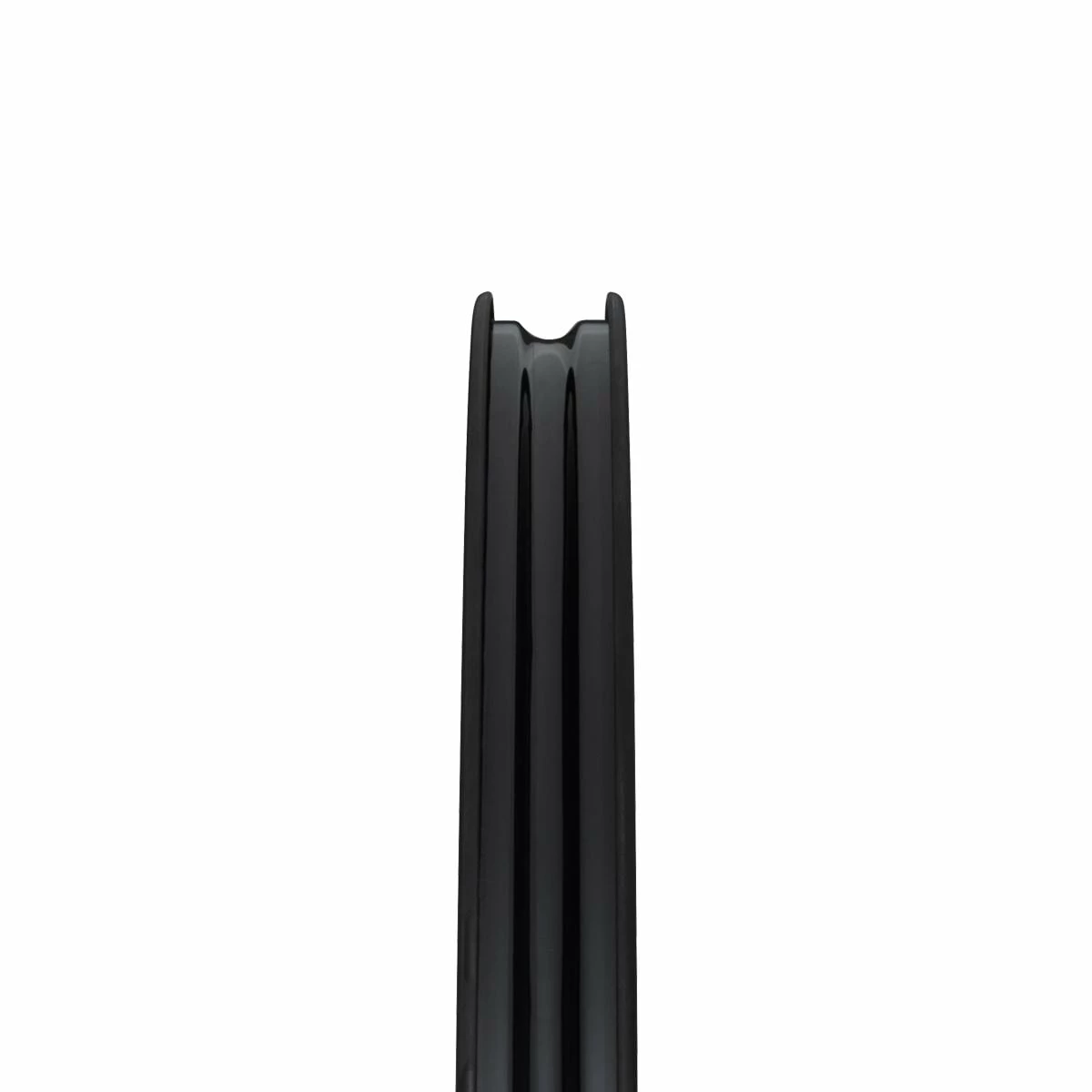

• Rim width/depth: 28 mm / 60 mm
• Inner rim width: 21 mm
• ETRTO: 21-622
• Recommended tyre width: 25 mm – 32 mm
• Spoke type: butted straight pull aero spokes (2.0 – 1.8 – 2.0)
• Number of spokes: 24 pcs
• Spoke pattern: 2-cross
• Nipples: aluminium

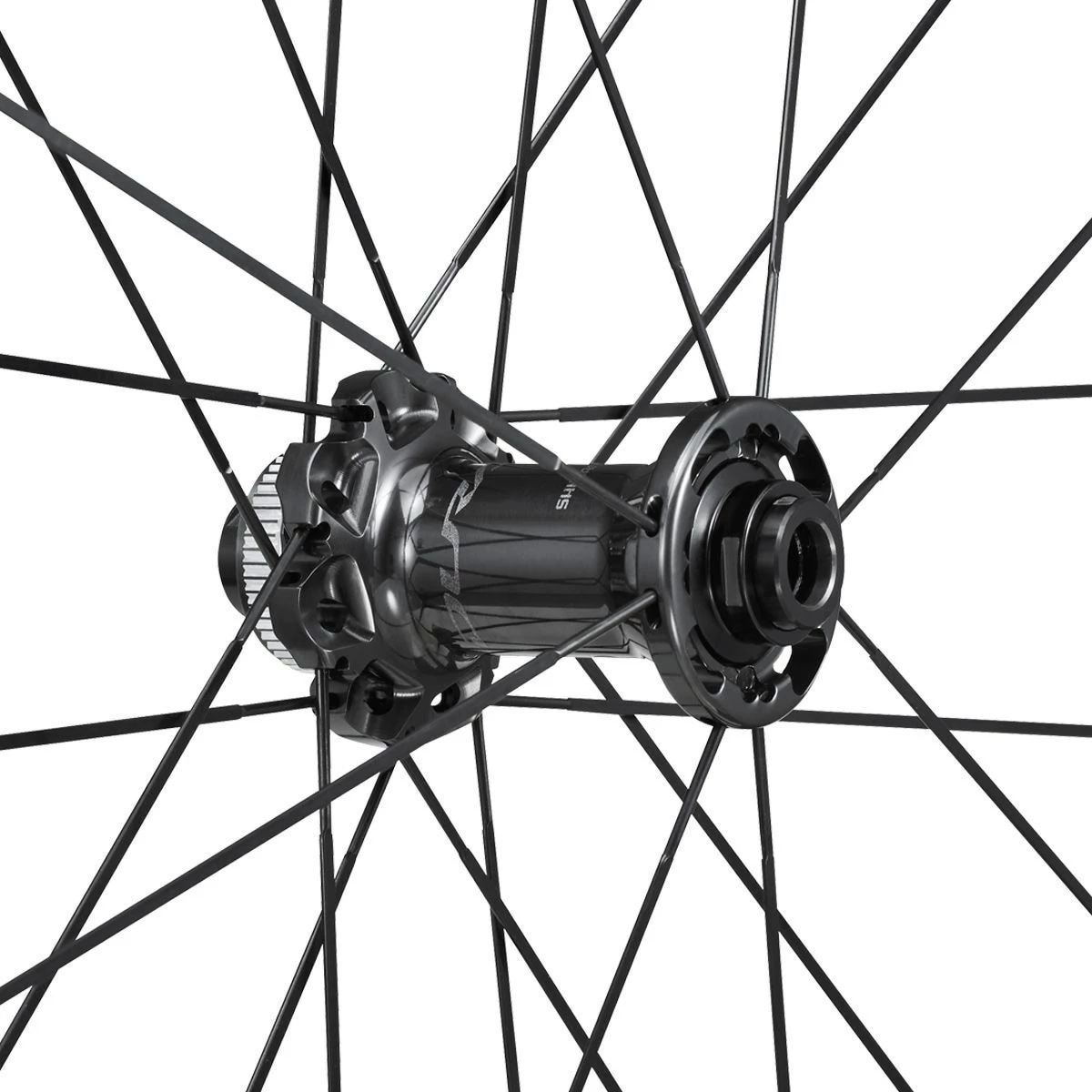

• Hub body: aluminium (anodised)
• Axle: aluminium (anodised)

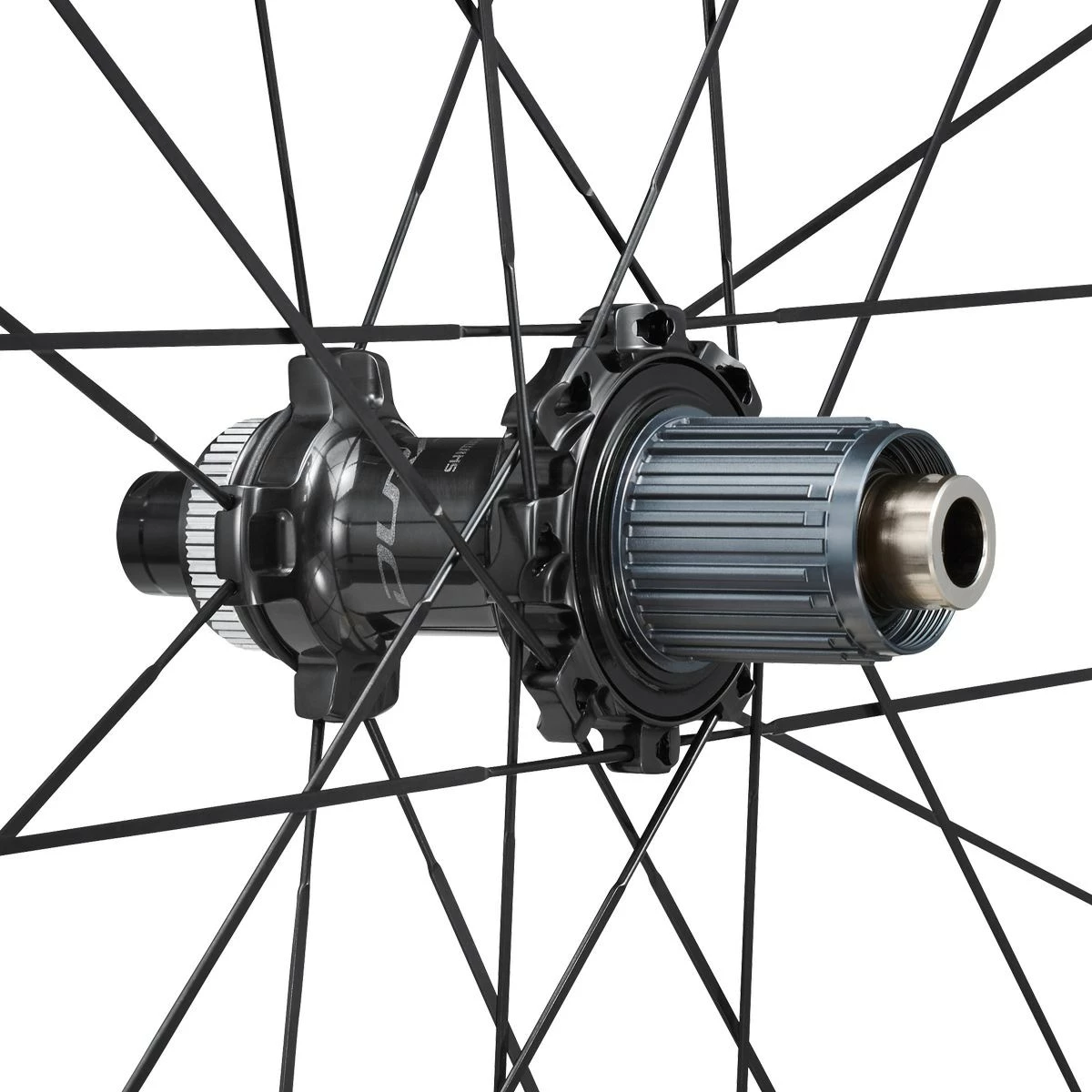

• Freehub body: SHIMANO HG Spline L2 (aluminium)
• Compatible with these cassettes: 12-speed SHIMANO Road (only!)*
• Brake disc mount: Center Lock
• Front axle: 12 x 100 mm (thru axle)
• Rear axle: 12 x 142 mm (thru axle)
• Weight: approx. 1609 g (front wheel approx. 751 g, rear wheel approx. 858 g)

In the box:
• 1 SHIMANO Dura Ace WH-R9270-C60-HR-TL-F road front wheel
• 1 SHIMANO Dura Ace WH-R9270-C60-HR-TL-R road rear wheel

*Attention:
The freehub is ONLY compatible with SHIMANO HG 12-speed road cassettes! A SHIMANO 11-speed road cassette or other SHIMANO cassettes are NOT compatible!
