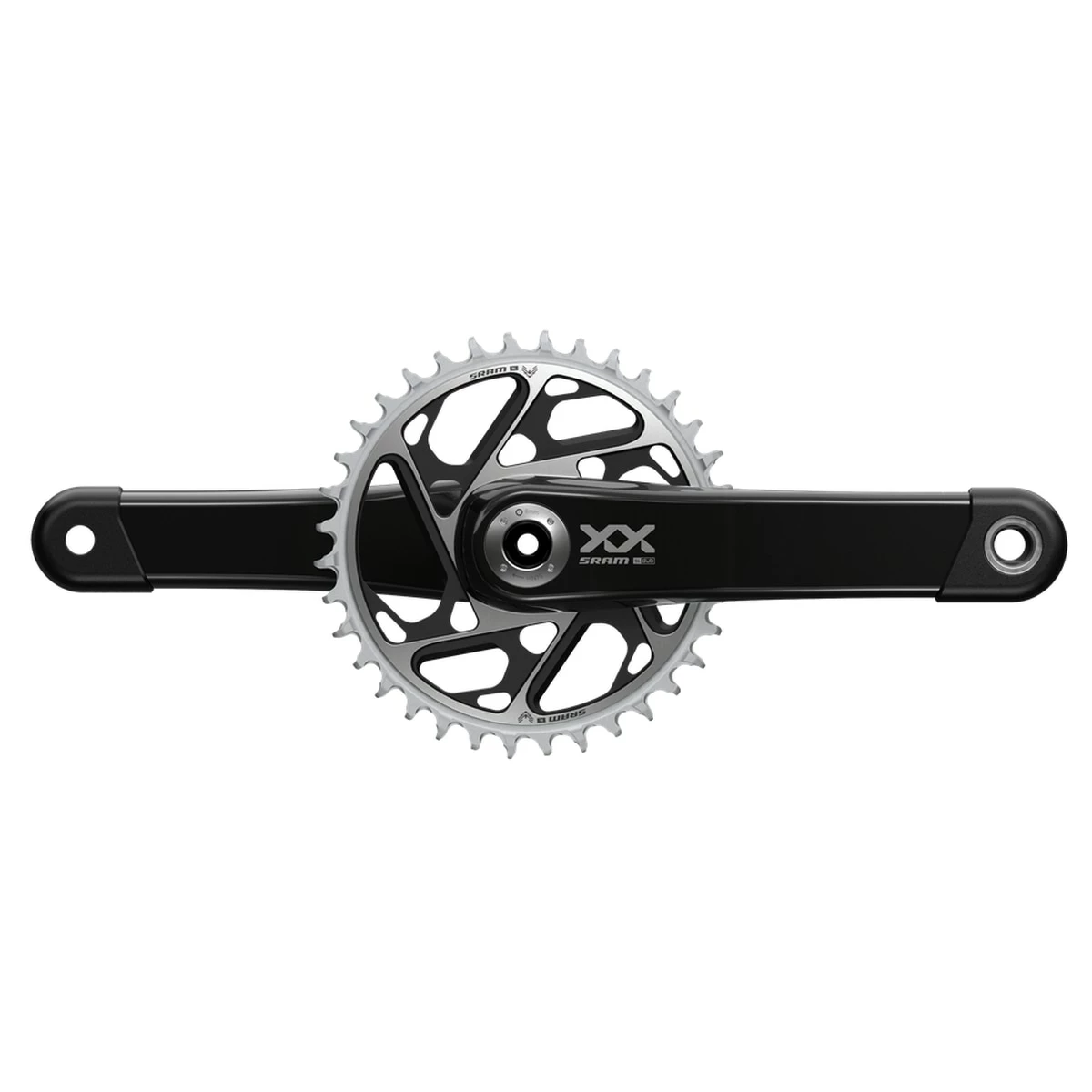

SRAM XX SL Eagle Transmission™ MTB Wide Crankset

With multiple World Championship medals, EWS series wins and Olympic gold medals, the SRAM XX SL Eagle Transmission™ crankset has already made a name for itself among SRAM athletes!
The high-end carbon crank arms have a hollow core and a special fibre design that combines a very low weight with maximum stiffness for efficient acceleration.

It is designed for use in a SRAM Eagle Transmission™ 12-speed drivetrain, features a 55 mm chainline and is optimised for 148 mm BOOST hubs. As a Direct Mount standard, SRAM uses the 8-bolt attachment known from its road cranksets for the first time on MTB cranksets, too. This makes it possible to retrofit the crankset with a Quarq AXS™ power meter.

Details:
• Weight-optimised hollow core carbon fibre construction
• DUB™ MTB Wide crank axle for 55 mm chainline (requires DUB™ MTB Wide bottom bracket!)
• DUB™ technology: 28.99 mm axle Ø for improved protection against dirt and full compatibility with all common BB standards
• Allows for subsequent upgrade with power meter

Technical details:
• Intended use: MTB (XC, Marathon)
• Series: XX SL Eagle Transmission™
• Model: FC-XX-SL-D1
• Type: T-Type
• Axle standard: DUB™ MTB Wide (requires DUB™ MTB Wide bottom bracket!)
• Material crank arms: Carbon
• Crank arm length: 175 mm
• Q-Factor: 174 mm
• Material chainring: Aluminium
• Chainring: 34 teeth
• Chainring offset: 3 mm
• Bolt circle Ø: – (Direct Mount)
• Direct Mount Standard: SRAM 8-bolt interface
• Chainline: 55 mm (for SRAM Eagle Transmission™ with 12 x 148 mm (BOOST) & 12 x 157 mm rear axle (SuperBOOST+)
• Compatible chains: SRAM Eagle Transmission™ 12-speed (T-Type); (SRAM Eagle™ 12-speed)*

In the box:
• 1 SRAM XX SL Eagle Transmission™ MTB Wide crankset
Note: WITHOUT bottom bracket!

Compatible bottom brackets:
• SRAM DUB™ MTB Wide bottom bracket cups with BSA thread (prod. code: 2341097)
• SRAM DUB™ MTB Wide bottom bracket cups PressFit 30 (prod. code: 2341099)

* Note:
According to the manufacturer, the Eagle Transmission™ T-Type chainrings are backwards compatible with Eagle™ 12-speed chains and can therefore be used with Eagle™ drivetrains. However, Eagle™ chainrings that are not T-Type cannot be used with Eagle Transmission™ chains.
